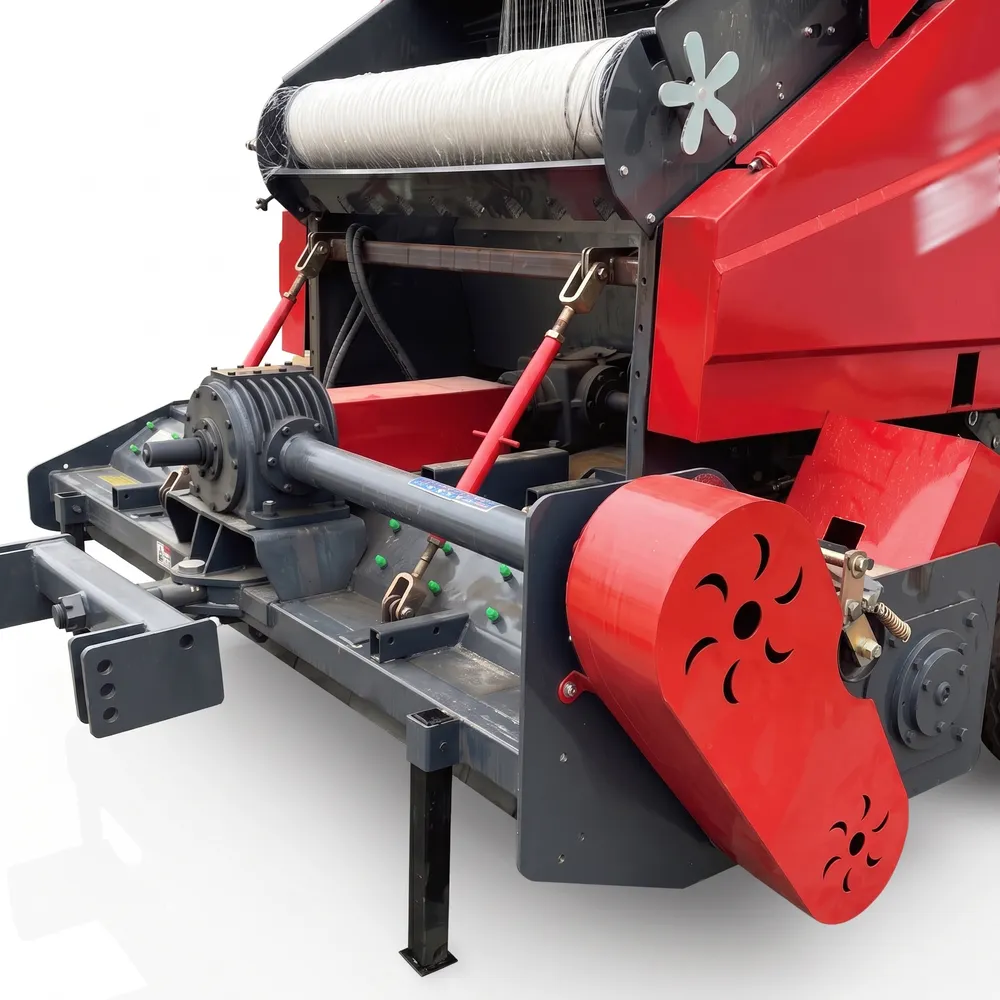

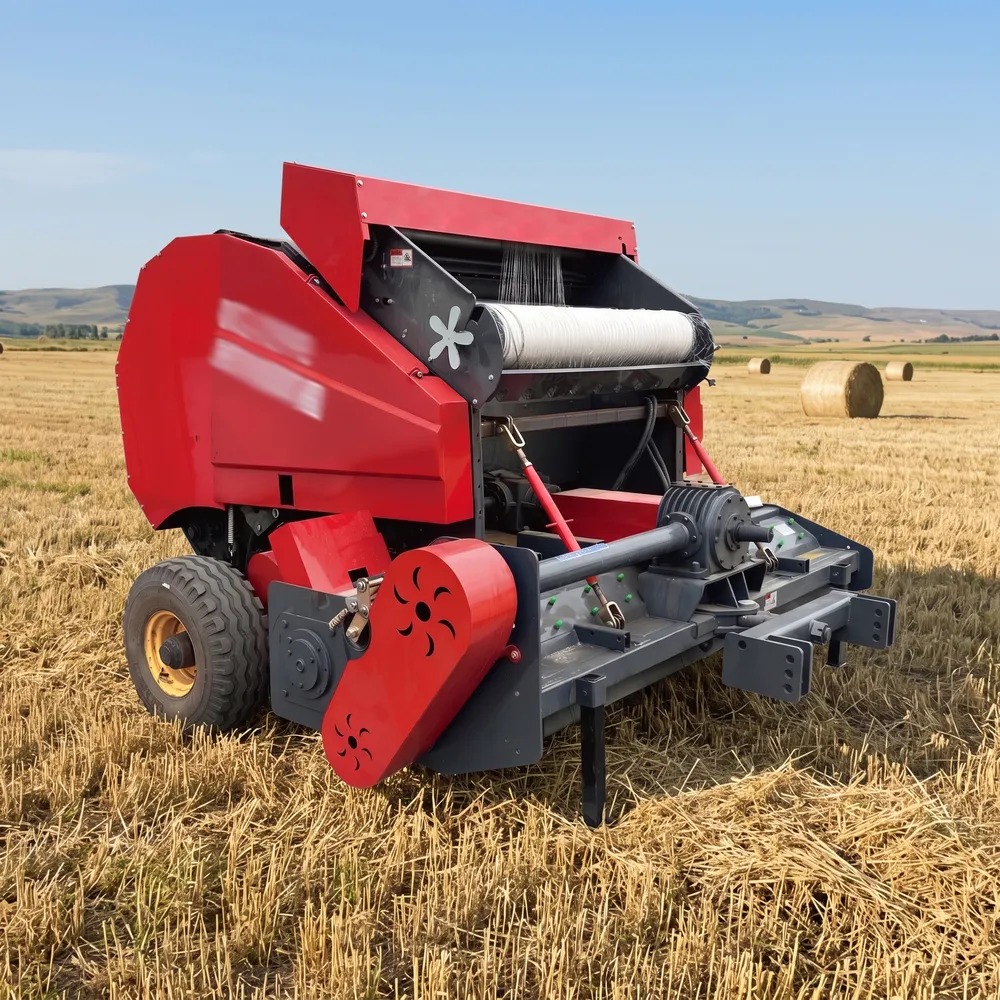

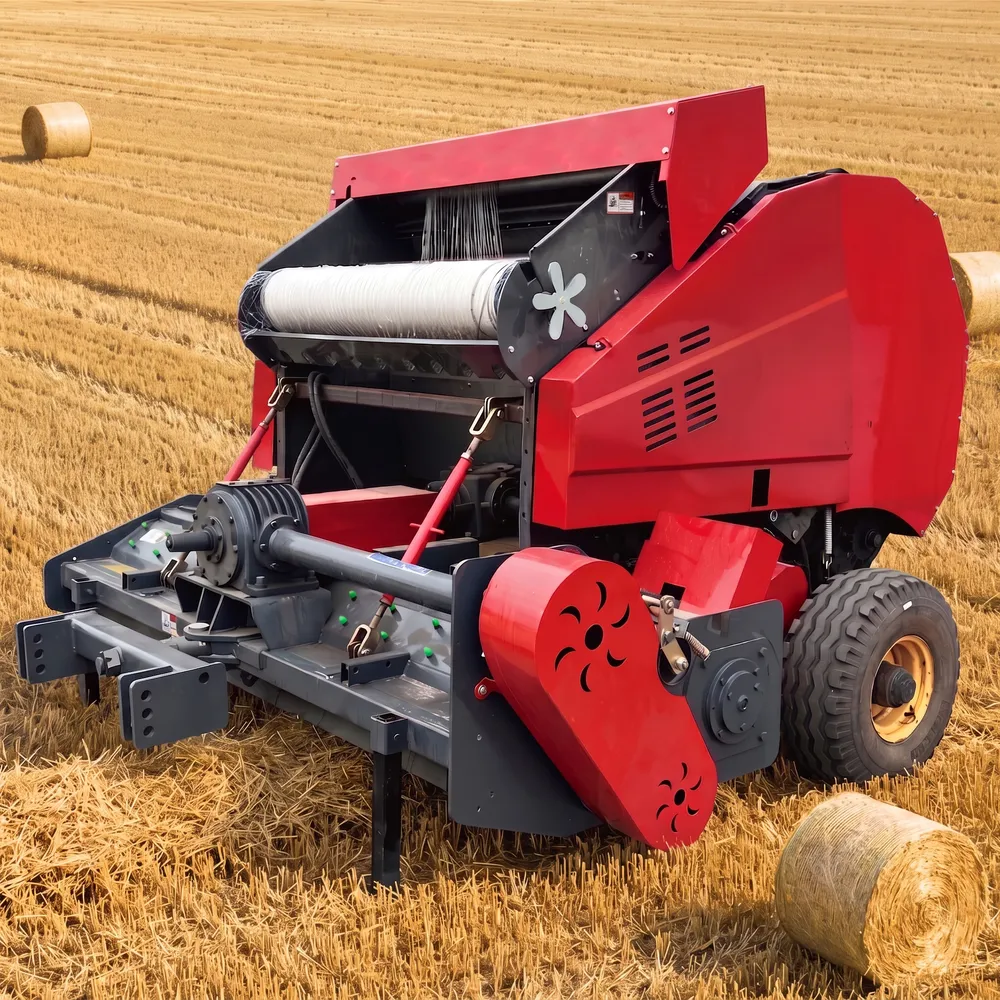

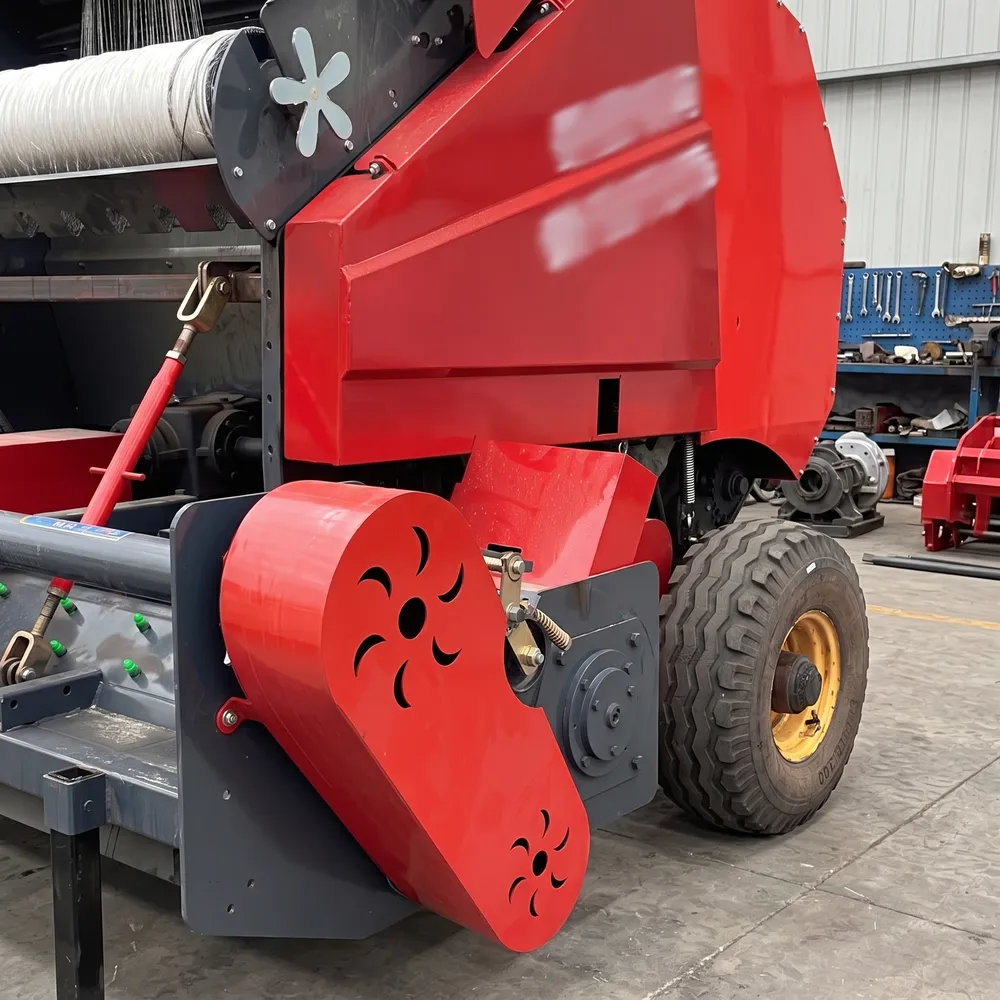

9YQ-2300 Trailed-type Round Baler for Tractor

Hydraulic System

The dedicated hydraulic circuit controls pickup header height adjustment and gate opening during bale ejection. Its built-in floating capability allows the header to follow ground contours automatically, maintaining consistent crop pickup depth without manual intervention. The hydraulic system is also connected to the rear gate actuator, enabling smooth, reliable bale discharge after wrapping completes, minimizing the cycle time between successive bales throughout the day.

Hay Round Baler Operation Precautions

1. Pre-Operation Inspection
Before starting each work session, perform a complete pre-operation inspection of the round baler. Check that all bolts and fasteners are tightened to specification, inspect round baler rollers for wear or damage, verify oil levels in the lubrication system, and verify the PTO shaft connection is secure. Any abnormality identified during inspection must be corrected before field operation to prevent machinery damage or operator injury.

2. PTO Shaft Speed and Connection
Always engage the round baler PTO shaft at the correct tractor engine RPM as specified in the operator manual. Operating the round baler at incorrect PTO speeds can cause drive shaft overload, clutch slippage, or chain failure. Ensure the PTO shaft protective guard is fully in place before operation and that the PTO connection is properly seated and locked to prevent disengagement in the field during peak-load baling cycles.

3. Safe Operating Speed
Match the tractor field speed to the density and volume of crop material in the windrow. Excessive ground speed when crop density is high can overload the feeding system and cause blockages in the bale chamber. Conversely, too slow a speed in sparse windrows reduces round baler efficiency. Monitoring the touch-screen display helps operators maintain the optimal speed-to-feed balance for consistent round bale formation throughout the day.

4. Blockage Clearance Procedure
If a blockage occurs in the pickup or feeding system, always disengage the PTO and stop the tractor engine completely before attempting to clear the obstruction. Never reach into the bale chamber, feeder, or roller area while any part of the round baler machine is in motion. Allow all rotating components to come to a complete stop before performing manual clearing, and use appropriate tools rather than bare hands to remove tangled crop material safely.

5. Net Wrapping Material Quality
Use only recommended round baler twine, netting, or round baler wrap materials that meet the specification requirements of the 9YQ-2300. Inferior or incompatible wrapping materials may break during the wrapping cycle, causing bale failure or jamming of the wrapping mechanism. Store unused netting and wrap rolls in a clean, dry location away from direct sunlight to preserve tensile strength and prevent UV degradation before use in the field.

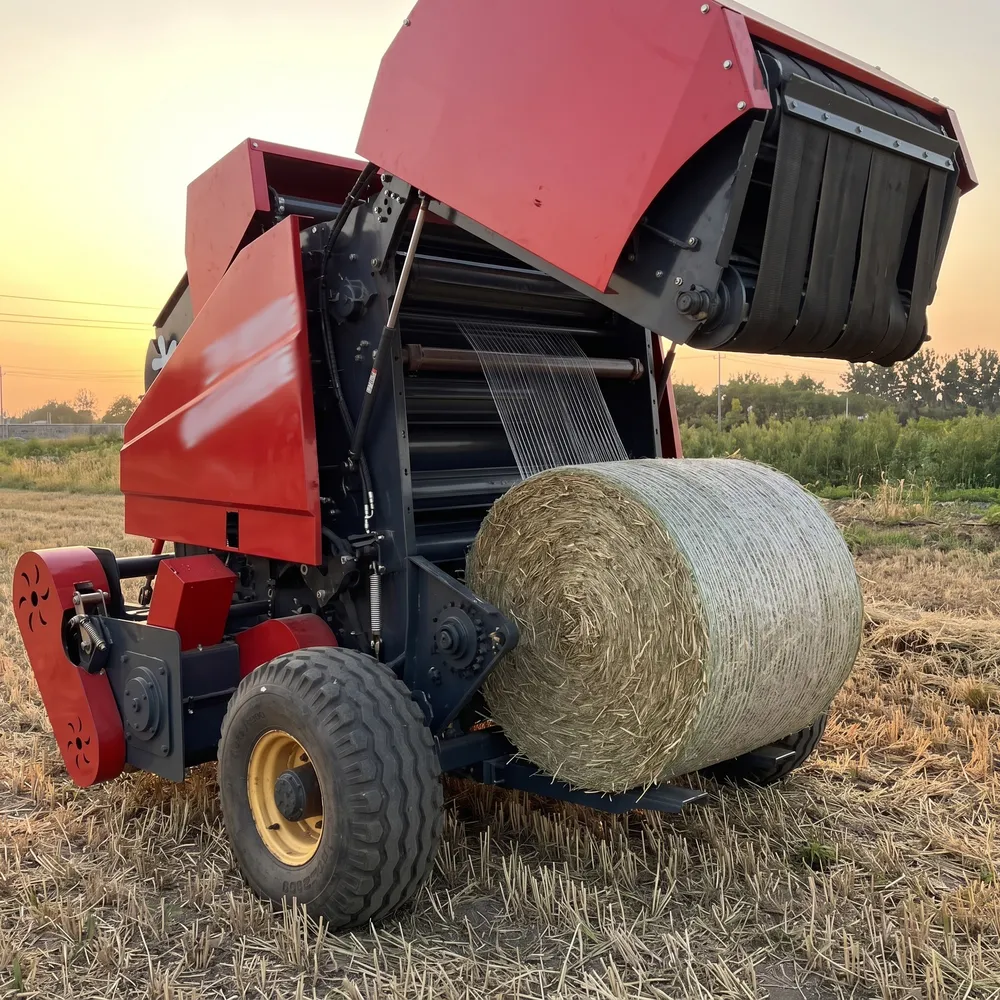

6. Bale Ejection Safety Zone
During bale ejection, maintain a clear safety zone behind the round baler of at least 5 meters. Finished round bales are heavy (typically 300 to 600 kg depending on crop type and density) and can roll unpredictably on sloped ground after discharge. No personnel should stand behind or downhill from the baler during the gate-opening and bale-eject sequence. Always verify the ejection zone is clear before activating the gate release from the tractor cab.

7. Hydraulic System Awareness
The hydraulic system controls pickup height and rear gate operation. Never perform maintenance or inspection on hydraulic components while the system is pressurized. Always lower the pickup header fully to the ground and release hydraulic pressure before servicing hydraulic hoses, fittings, or the hydraulic cylinder. Hydraulic fluid injected under pressure into skin is a serious medical emergency and requires immediate hospital treatment.

How to Maintain Your Round Baler Machine

1. Daily Lubrication Check
At the start of each working day, verify that the automatic thin-oil lubrication reservoir is filled to the required level and that all centralized grease points have received adequate lubrication. Inspect the chain drive system for proper tension and signs of dry links. While the auto-lubrication system handles most needs, visually verifying coverage at key bearing locations ensures the system is functioning correctly and prevents accelerated round baler parts wear during long operating shifts.

2. Roller and Belt Inspection
Regularly inspect all 18 round baler rollers (Phi190mm) for surface wear, groove formation, and bearing play. Worn rollers reduce bale uniformity and density, leading to poorly shaped bales that are difficult to handle and store. Also inspect round baler belts (if applicable in belt-type configurations) for cracking, fraying, or uneven tension. Replacing worn rollers and replacing round baler belts at the first sign of deterioration prevents secondary damage to the bale chamber and minimizes unplanned downtime during the harvest season.

3. Chain Drive Tension and Replacement
Chain tension must be checked every 50 hours of operation and adjusted to the specified sag tolerance. Overly tight chains accelerate sprocket and bearing wear, while loose chains can skip under load and cause sudden component failure. Lubricate chains regularly with chain oil in addition to the automatic system as a secondary measure in dusty or wet conditions. Replace chains showing visible elongation, cracked links, or excessive rust as part of routine round baler maintenance before they break under field load.

4. Hydraulic System Service
Change the hydraulic oil and replace hydraulic filters according to the manufacturer schedule (typically every 250 to 500 hours of operation). Inspect all hydraulic hoses for cracks, chafing, and fitting leaks. Clean hydraulic cylinder rod surfaces to prevent seal contamination. Contaminated hydraulic oil is a leading cause of hydraulic system component failure in round balers, leading to sluggish pickup response and unreliable gate operation that reduces daily baling output and increases repair costs.

5. Post-Season Deep Cleaning
At the end of each harvesting season, perform a thorough deep clean of the entire round baler machine. Remove all crop residue, dust, and chaff from the bale chamber, roller surfaces, chain runs, and electrical harness routing paths. Trapped moisture in crop debris accelerates corrosion on metal components during off-season storage. After cleaning, apply a light coating of anti-rust protection spray to exposed metal surfaces and touch up any paint damage to prevent rust from forming during the winter storage period.

6. Electronic System Diagnostics
Periodically verify the calibration of the displacement sensor and the accuracy of the wrapping-loop counter via the touch-screen diagnostic menu. Sensor drift can lead to inaccurate bale weight readings or incorrect wrap counts that waste netting material and affect bale quality. Check all electrical connections for corrosion and secure seating, especially those exposed to vibration or moisture. Software updates from the round baler manufacturer should be applied as recommended to maintain optimal system performance and accuracy throughout the working life of the machine.

Round Baler and Round Baler PTO Shaft

The round baler PTO shaft (Power Take-Off shaft) is the mechanical link between the tractor and the round baler machine. It transfers rotational power from the tractor engine directly to the round baler drivetrain, powering the pickup rotor, the feeding mechanism, the compression rollers, and the net wrapping system. Without a properly functioning PTO shaft, the round baler cannot operate, regardless of how advanced its electronic or hydraulic systems are.

For the 9YQ-2300 Trailed-type Round Baler, the PTO shaft must match the tractor power output of 58.8 to 132.5 kW and operate at the standard agricultural PTO speed of 540 RPM or 1000 RPM depending on the specific tractor and regional standards. Selecting the correct shaft length, connection yoke type (6-spline, 21-spline, or square), and overload protection (shear bolt or friction clutch) is essential to protect both the tractor gearbox and the round baler internals from overload damage.

When a blockage occurs in the round baler for hay or silage, crop material resistance can spike dramatically, creating a torque surge that could damage the round baler chain drive, bearings, or clutch if unprotected. A quality round baler PTO shaft with a shear bolt or friction overload clutch absorbs these peak loads and protects the entire drivetrain from catastrophic failure. This is why sourcing a high-quality PTO shaft from a specialist round baler manufacturer is as important as the baler itself.

Selecting the correct PTO shaft for the 9YQ-2300 involves three key factors. First, measure the distance between the tractor PTO output flange and the round baler input gearbox coupler at the maximum and minimum hitching positions to determine the correct shaft length and maximum compression/extension travel. Second, verify the yoke connection profile matches the tractor PTO stub shaft (typically 6-spline 1-3/8 inch in North America and Europe; alternate profiles apply in other regions). Third, verify the telescoping tubes have sufficient overlap at maximum extension to prevent separation under field vibration.

A well-maintained round baler PTO shaft prolongs the service life of both the tractor and the round baler. Grease all universal joints at the recommended intervals (typically every 8-10 working hours in heavy use), inspect the plastic protective guard for cracks and ensure it rotates freely, and check that the profile tubes slide smoothly without binding under load. A damaged or seized PTO shaft can cause violent vibration that damages round baler rollers, bearings, and the tractor gearbox simultaneously.

FAQs

Q: How big a tractor do I need for the 9YQ-2300 round baler?
A: The 9YQ-2300 is designed for tractors with a power output of 58.8 kW (approximately 79 hp) to 132.5 kW (approximately 177 hp). This makes it a suitable round baler for compact tractor configurations at the lower end and standard farm tractors at the upper end. Operating below the minimum power rating may result in sluggish performance, baling interruptions, or excessive PTO shaft strain, particularly in dense crop conditions. Always verify your tractor PTO output meets the specification before purchasing.

Q: What round baler sizes are available and what bale size does the 9YQ-2300 produce?
A: Round baler sizes vary by manufacturer and model. The 9YQ-2300 produces round bales with a fixed diameter of Phi1000mm and a bale width (compression room width) of 1250mm. This is a mid-size round bale format, well-suited for handling by common front-loader tractors and bale wrappers without specialized equipment. Bale weight varies with crop type and density, and the high-precision displacement sensor allows operators to control the target bale weight precisely to suit their handling and storage requirements.

Q: Can the 9YQ-2300 be used as a silage round baler for high-moisture crops?
A: Yes. The 9YQ-2300 silage round baler is fully capable of baling high-moisture forage crops such as fresh cut grass, corn silage, and alfalfa at cutting moisture levels. When used as a silage round baler, bales should be wrapped with silage stretch film (separate bale wrapper required) as soon as possible after ejection to initiate anaerobic fermentation and preserve nutritional value. The automatic net wrapping function on this machine applies a base layer of netting to hold the bale shape before transfer to the film wrapper, streamlining the silage production workflow.

Q: How does the automatic net wrapping system work on this round baler?
A: When the bale reaches its target size, the electronic control system automatically initiates the wrapping sequence. A feed arm introduces round baler wrap (net or twine) into the rotating bale where it is carried around the full circumference. A high-precision sensor counts the number of wrap loops applied and stops the wrapping system precisely at the pre-set number, cutting the material cleanly. This automated process eliminates the need for manual intervention during wrapping, reduces round baler twine and wrap waste, and ensures every bale receives consistent coverage for reliable weatherproofing.

Q: Can this round baler be used for corn stalks and heavy fibrous crops?
A: Absolutely. The 9YQ-2300 round baler for corn stalks is designed to handle the high bulk density and fibrous nature of post-harvest corn residue. The dual feeding mechanism (Shift Fork + Screw Continuous) prevents bridging and blockages common with heavy material. The 18-roller compression system with Phi190mm rollers provides the mechanical force required to compact tough stalks into dense, stable round bales. Ensure the matching tractor power is at the higher end of the 58.8 to 132.5 kW range when consistently baling heavy corn stalk windrows for maximum productivity.

Q: What is the difference between replacing round baler belts and round baler rollers?
A: Belt-type round balers use flexible rubber or synthetic belts that form the bale chamber and must be replaced periodically as they stretch, crack, or delaminate. Replacing round baler belts is a common maintenance task on belt-style machines. The 9YQ-2300 uses a roll drum-type (roller) compression chamber with 18 solid steel round baler rollers instead of belts, eliminating belt replacement entirely. Roller-type machines generally require less frequent chamber maintenance, as rollers are highly durable components that only need replacement when worn past their minimum diameter specification after extended use.

Q: Is the 9YQ-2300 suitable as a small round baler for a small farm or compact tractor?
A: The 9YQ-2300 qualifies as a compact round baler suitable for small to medium farm operations. With a minimum tractor power requirement of just 58.8 kW (approximately 79 hp), it is accessible for operators with mid-range compact utility tractors. Its overall machine weight of 2500 kg and dimensions of 2950 x 2750 x 2050 mm make it compact enough for most farm lanes and field access routes. It is an ideal choice for farmers looking for a small round baler for compact tractor applications who still require professional-grade bale quality and smart control technology.

Q: How do I source replacement round baler parts for the 9YQ-2300?
A: Replacement round baler parts for the 9YQ-2300 are available directly from our company. We recommend ordering a spare parts kit alongside your initial machine purchase, especially for customers in regions where agricultural machinery logistics times are longer. Common consumable parts include spring teeth for the pickup header, chain links, drive belts, net wrapping blades, and sensor components. Our parts team can prepare a recommended consumable parts package based on your planned annual operating hours and crop types to ensure you are never caught waiting for parts during peak harvest season.

Q: What round baler tires are fitted and can they be replaced locally?
A: The 9YQ-2300 round baler tires are standard agricultural implement tires sized to support the 2500 kg machine weight across typical field conditions. The tire specification (size and ply rating) is listed in the product documentation and matches commercially available replacement tires through most agricultural tire distributors globally. We recommend checking tire pressure before each season to maintain correct load-bearing performance and prevent premature sidewall fatigue. Round baler tires should be replaced when tread depth falls below safe minimums or when sidewall cracking is observed during annual inspection.

Q: Does this round baler include a bale wrapper for silage production?
A: The 9YQ-2300 is a standalone round baler machine equipped with automatic net wrapping. For complete silage production, a separate round bale film wrapper is required to apply stretch film over the net-wrapped bale to establish the airtight seal necessary for anaerobic fermentation. We can advise on compatible bale wrapper specifications to pair with this round baler for silage operations. The net wrapping system on the 9YQ-2300 provides the structural pre-wrap needed before transfer to any inline or combination wrapper system, ensuring bale shape integrity throughout the handling process.
