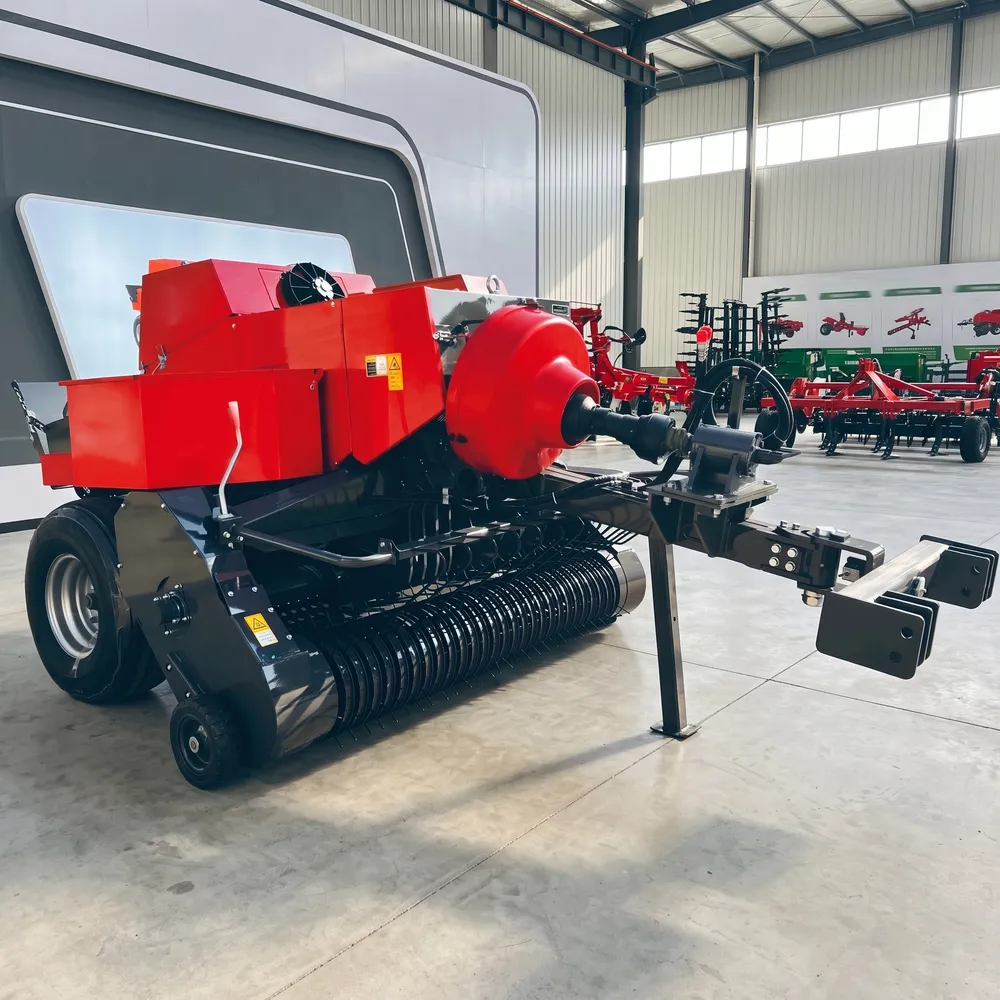

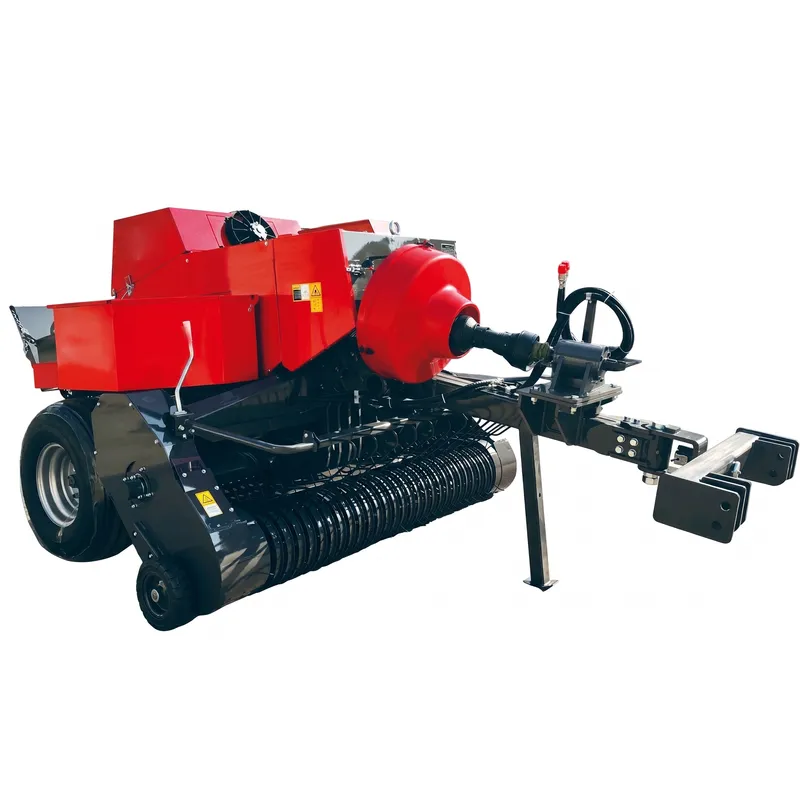

9YF-2200 Towed-type Square Baler for Tractor

1. Rice Straw

Rice straw is one of the most abundant agricultural residues in Asia, but its low density and high moisture variability make it challenging to handle. This small square baler compresses rice straw into firm, uniform bales ideal for mushroom substrate production, papermaking raw material, and livestock bedding. The spring-tooth pickup performs well on low-lying post-harvest windrows typical of paddy field conditions.

2. Wheat Straw

Wheat straw baling is one of the primary use cases for this square hay baler. After combine harvesting, the straw windrows left behind are efficiently picked up and formed into dense straw square bales suitable for thatching, animal bedding, bioenergy combustion, and soil amendment. The automatic rope baling system ensures consistent tying even when operating at speed on dry, slippery wheat straw.

3. Corn Silage

When configured for silage square baler applications, the 9YF-2200 can process chopped corn silage material, forming dense, low-oxygen bales that, when wrapped promptly with square baler wrap, undergo optimal anaerobic fermentation. This silage application is particularly valuable for dairy and beef cattle operations seeking to secure high-energy winter feed reserves with a manageable, stackable bale format.

4. Cotton Stalks

Cotton stalks present a particular challenge due to their woody, branched structure and tendency to tangle. This square baler for corn stalks-class machine handles cotton residues effectively thanks to its robust fork feeding mechanism and high-force plunger compression. Baled cotton stalks are used as biomass fuel, mushroom growing medium, or composting feedstock, turning field residues into a recoverable economic asset.

5. Pasture Grass

This square baler for hay excels when processing ryegrass, timothy, brome and mixed pasture species. The spring-tooth pickup is especially suited to lush grass windrows that tend to clump and mat. Resulting square hay bales of pasture grass are among the most versatile livestock feed products, accepted by cattle, sheep, horses, and goats alike, and are easy to portion for rationed feeding via a standard square bale feeder.

6. Sugarcane Tops and Leaves

In sugarcane producing regions, the leafy tops and dry harvest residues represent a substantial biomass resource. The 9YF-2200 square bale baler efficiently compresses this fibrous, high-silica material into stable bales suitable for biomass power generation or livestock roughage supplementation, reducing field burning and improving air quality while creating an additional revenue stream for sugarcane farmers.

7. Reeds

Wetland reed harvesting is a specialised application where this hay square baler proves valuable. Reeds harvested in winter from lake margins and river banks are compressed into bales for thatching, weaving, papermaking or bioenergy. The robust chassis of the 9YF-2200 handles the uneven, moisture-laden terrain typical of reed harvest sites, while the 2200 mm pickup width maximises productivity across cut reed swathes.

8. Alfalfa

Alfalfa is the premium livestock feed crop and among the most demanding to bale correctly. Leaf retention during pickup and compression is critical, as alfalfa leaves contain the highest proportion of protein and digestible nutrients. The gentle spring-tooth pickup and carefully calibrated compression pressure of this small square hay baler produce dense, leaf-rich alfalfa bales that command premium prices in domestic and export livestock feed markets.

Square Baler Machine Components

1. Pickup Header Assembly
The pickup header is the first point of contact with the crop. It consists of a rotating reel fitted with rows of hardened spring-tooth tines mounted on a cam-controlled carrier. The cam mechanism causes each tine to follow a controlled path, aggressively lifting crop from the ground at the front and releasing it cleanly into the feed channel at the top without wrapping or choking, even in heavy, tangled windrows of damp square bale hay.

2. Auger Consolidating System
Positioned directly above the pickup, the transverse feed auger consolidates crop from the full 2200 mm pickup width into the narrower central throat. The auger flights are engineered to handle a broad range of crop densities and moisture levels without compacting material prematurely. Proper auger function is critical to balanced loading across the compression chamber width and uniform bale weight.

3. Fork Feeding Mechanism
The fork feeder consists of one or more tined fork arms driven in an elliptical or rotary path. Each fork stroke captures a charge of consolidated crop and positively drives it through the feed opening into the compression channel. This positive-feed design eliminates the passive slippage that can occur with rotor or belt feeders when handling wet or slippery material, ensuring reliable throughput in all field conditions.

4. Plunger and Compression Chamber
The reciprocating plunger is the core compression component of every square baler machine. Driven by the double-chain main drive via a crankshaft mechanism, it delivers repeated high-force compression strokes into the 460 x 360 mm channel. Hardened wear plates lining the chamber walls resist abrasion from gritty crop material and maintain precise dimensional tolerances to produce consistently shaped square bales bale after bale.

5. German D-Type Knotter Units
The two D-type knotters are precision-engineered German-origin assemblies mounted above and below the bale channel. Each knotter consists of a billhook, a twine disc, a stripper arm, and a needle that carries the square baler twine around the bale. Precision-ground components ensure that each knot loop is formed, tightened and cut consistently without tail-end failures or missed ties, maintaining bale integrity during ejection and handling.

6. Main Drive Chain and Sprocket System
Power from the tractor square baler PTO shaft enters the machine through a gearbox and is distributed by the double-row roller chain and sprocket drivetrain. The twin-chain configuration shares load across a greater contact area, reducing peak stress on individual links and sprocket teeth. Properly tensioned and lubricated chains extend service intervals and are a key maintenance focus when caring for square baler parts long-term.

7. Bale Length Metering and Ejection System
A star-wheel or roller metering device mounted in the bale channel counts the accumulated material and triggers the knotting cycle at the preset length. This mechanical counter is simple, robust, and requires no electrical power, ensuring reliable operation in dusty or humid field environments. Once knotted, the finished square bale of hay is pushed to the rear by the next incoming bale cycle and drops cleanly for collection by a square bale bundler or windrow trailer.

Operating Precautions

1. Pre-Operation Inspection
Before starting the square baler machine each day, inspect all chain tension, lubrication points, knotter timing, and twine supply. Verify that the PTO shaft guard is correctly fitted and undamaged. Check that no rocks, wire, or hard objects are lodged in the pickup zone, as foreign objects can cause catastrophic knotter or plunger damage in seconds.

2. PTO Shaft Speed Compliance
The square baler PTO shaft must be operated at the correct rated speed. Under-speed operation reduces plunger force and leads to loose, poorly formed bales. Over-speed can overload the knotter timing mechanism and snap twine mid-cycle. Always match tractor engine rpm to achieve the manufacturer-specified PTO output speed before engaging the baler in the crop windrow.

3. Field Speed Management
Adjust tractor field speed according to windrow density. Overloading the pickup by travelling too fast in heavy windrows causes blockages in the fork feeder and increases the risk of shear bolt failure. For dense wheat or corn straw windrows, reducing forward speed by 20-30% and allowing the machine to process material thoroughly produces better bale density and fewer blockages than pushing for maximum throughput speed.

4. Twine Supply and Threading
Use only the recommended grade and tensile strength of square baler twine. Route twine through all guides and tensioning eyes exactly as specified in the operator manual. Incorrect threading is the most common cause of missed ties or twine break failures. Always carry at least one spare spool of twine in the tractor cab so that empty spools can be replaced without leaving the field during peak harvesting windows.

5. Knotter Timing Verification
Periodically verify that both D-type knotters are operating in perfect synchronisation. Misaligned knotter timing leads to one-sided binding where one tie is secure and the other loose or absent, causing bale shape failure during ejection. If bales are emerging from the machine with only one twine tie, stop immediately, re-time the affected knotter assembly, and run two test bales before resuming full-speed operation.

6. Terrain and Safety
When operating on sloped terrain, always travel across slopes rather than up or down to minimise lateral tipping risk. Never allow bystanders within the bale ejection zone at the rear of the machine. Disengage the PTO and shut down the tractor engine before clearing blockages or performing any manual adjustments on the pickup, feeder, or knotters, as spring tension in the mechanism can cause unexpected movement.

How to Maintain Your Small Square Baler

1. Daily Chain and Sprocket Lubrication
The double-row chains driving the plunger and auxiliary mechanisms should be lubricated daily during the baling season using a high-quality chain oil or agricultural chain lubricant. Apply oil evenly to the inner and outer link plates while slowly rotating the drive. Proper lubrication prevents accelerated wear on sprocket teeth and chain rollers, which are among the highest-cost square baler parts to replace mid-season.

2. Knotter Cleaning and Adjustment
Both German D-type knotters must be kept clean of crop dust, chaff, and twine fragments after every 8 to 10 hours of operation. Use compressed air to blow debris from the billhook, disc, and stripper surfaces. Inspect the knotter bill for wear and the disc for smooth rotation. Mis-adjusted knotters are responsible for the majority of in-field tie failures, so it is worth investing time in correct factory setting verification at the beginning of each harvest season.

3. Pickup Tine Inspection and Replacement
Spring-tooth pickup tines are consumable components that wear, bend, or break during normal operation. Inspect the full set of tines after every major field session, replacing any bent or cracked tines immediately. Running with missing tines causes uneven crop flow across the pickup width, leading to unbalanced loading of the compression chamber and inconsistent bale weight. Keep a stock of spare tines as standard workshop inventory throughout the baling season.

4. Compression Chamber Wear Plate Check
The hardened wear plates lining the compression channel should be inspected at mid-season and end of season. Excessive wear causes the plunger to lose compression force, resulting in loosely formed bales. Measure plate thickness against the manufacturer minimum specification. Early replacement of worn chamber wear plates avoids the secondary damage that can occur to the plunger itself when it begins operating against the underlying structural steel of the channel.

5. End-of-Season Storage Preparation
Before putting the compact square baler into winter storage, thoroughly clean all crop residue from every surface, especially from around the pickup, feeder, and knotters where material harbours moisture and causes corrosion. Apply a light protective coating of lubricant or anticorrosion spray to all unpainted metal surfaces. Remove twine from the needles to prevent UV degradation, and store the machine under cover or beneath a weatherproof cover to protect painted surfaces and rubber components.

6. Scheduled Gearbox Oil Change
The main input gearbox that transfers and splits PTO power should have its oil level checked before the start of each season and changed according to the manufacturer hour interval recommendation, typically every 200 to 300 operating hours. Use only the specified viscosity grade gear oil. Operating with degraded or low gearbox oil is a leading cause of premature gear failure, which is an expensive and time-consuming repair that is entirely preventable through routine scheduled maintenance.

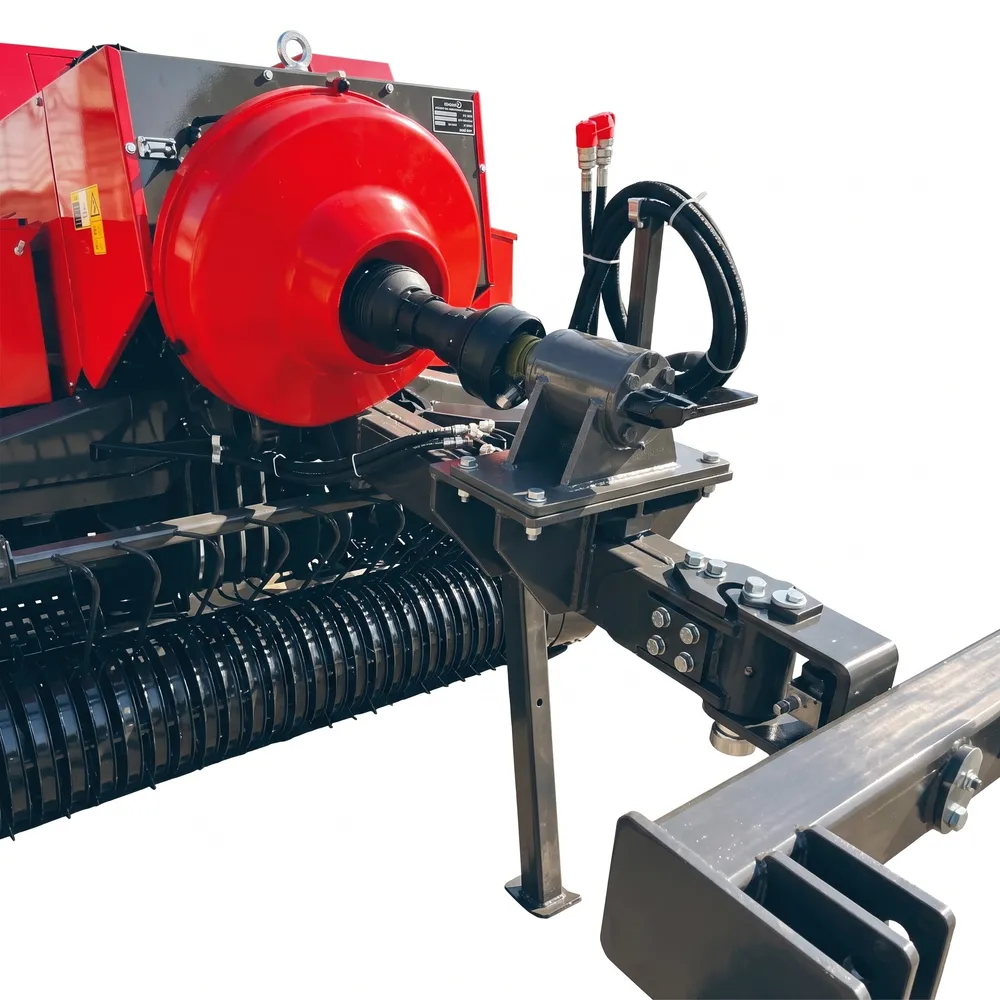

Square Baler and Square Baler PTO Shaft

The relationship between a square baler machine and its square baler PTO shaft is fundamental to the entire baling operation. Every function of the 9YF-2200, from pickup rotation and fork feeding to plunger compression and knotter activation, is powered exclusively by mechanical energy transferred from the tractor through the PTO driveline.

The tractor PTO stub shaft, operating at either 540 rpm or 1000 rpm depending on the tractor specification, connects to the square baler PTO shaft assembly via a splined coupling. The PTO shaft transmits rotational torque along the hitch distance between the rear of the tractor and the input gearbox of the baler. For the 9YF-2200 requiring a minimum of 36.8 kW, the PTO shaft must be rated to handle the corresponding torque loads, particularly during slug feeding or plunger stall conditions when peak torque can spike significantly above steady-state values.

A square baler PTO shaft must be matched to the hitch distance of the specific tractor and baler combination. Telescoping shaft lengths allow adjustment for different tractor drawbar positions, but the shaft must never be operated fully extended or fully collapsed. At full extension, the inner and outer profile tubes can separate under load; at full compression, the tubes bottom out and transfer impact shock directly to tractor and gearbox. Operating joint angles should be kept below 15 degrees in the working position and should be equal on both ends of a cardan shaft arrangement to cancel velocity fluctuation.

Most quality square baler PTO shaft assemblies incorporate a friction clutch or shear-bolt torque limiter at one or both ends. This overload protection device is critical for the 9YF-2200 because blockages in the fork feeder or plunger channel can cause the drivetrain to lock almost instantaneously. Without a torque limiter, the energy stored in the rotating flywheel and PTO shaft would be transmitted as a catastrophic impact load directly to the gearbox gears, crankshaft bearings, and chain drive sprockets, causing expensive internal damage.

The full-length plastic or steel guard enclosing the PTO shaft is a mandatory safety component. It must be correctly fitted with its retaining chains attached to non-rotating tractor and baler mounting points at all times during operation. Crop residue that accumulates inside a damaged or missing guard can fuse to the rotating shaft under heat friction, creating a serious fire hazard. Inspect the guard for cracks, breaks, and secure fitting before every field session.

FAQs

Q1. What tractor power is required to run the 9YF-2200 square baler?
A: The 9YF-2200 requires a minimum matching power of 36.8 kW (approximately 50 hp) measured at the tractor PTO output. In practice, using a tractor with 55 to 75 kW of engine power provides a comfortable operating reserve, particularly when baling dense material such as corn stalks or wet grass. Running closer to the minimum power rating is suitable for lighter crops such as dry wheat straw in thin windrows, but always monitor tractor engine load to avoid overheating during sustained high-throughput baling.

Q2. How long is a square bale of hay produced by this machine?
A: The bale length on the 9YF-2200 is adjustable via the bale length metering mechanism. Standard bale lengths for small square balers of this class typically range from 400 mm to 1200 mm depending on operator preference and downstream handling requirements. The cross-section of the bale is fixed at 460 mm wide by 360 mm tall. For hand-carrying or manual stacking operations, shorter bale lengths of 400 to 600 mm reduce individual bale weight, while longer settings of 800 to 1000 mm are preferred for mechanical handling with a square bale bundler or bale accumulator.

Q3. What types of square baler twine are compatible with this machine?
A: The 9YF-2200 is compatible with standard polypropylene or sisal square baler twine in the tensile strength range appropriate for small square baler applications, typically 130 to 200 kg breaking strength. Always use twine from a reputable manufacturer with consistent diameter and tensile properties throughout the spool. Low-quality or off-specification twine is a leading cause of knotter misfire and bale tie failure. It is advisable to test a new twine brand with several bales at low field speed before committing to a full-season supply purchase.

Q4. Can this square baler be used for silage or high-moisture crops?
A: Yes, this silage square baler application is possible when baling pre-wilted grass or corn silage material at appropriate moisture levels. For successful fermentation, bales should be wrapped promptly with at least four to six layers of UV-stabilised square baler wrap film to establish an anaerobic environment. Very high-moisture material above 65-70% dry matter content should be pre-wilted to reduce moisture before baling to achieve adequate bale density and avoid mould development inside the bale. Consult forage extension recommendations for your specific crop and climate before commissioning silage baling operations.

Q5. What are the most common square baler parts that need replacement during a season?
A: The highest-turnover consumable square baler parts during a typical season are pickup spring teeth (which bend or break on contact with stones or hard soil), drive chain links (which wear and eventually need pitch correction or section replacement), knotter twine disc friction linings, and shear bolts in the overload protection system. Less frequent but equally important replacements include plunger chamber wear plates, PTO shaft universal joint bearings, and feed fork pivot pins. We recommend keeping a standard spare parts kit on hand that covers all of these items to avoid costly downtime delays during peak harvest windows.

Q6. Is this a self-propelled square baler or does it require a tractor?
A: The 9YF-2200 is a towed-type square baler, not a self-propelled square baler. It must be hitched to a tractor via a standard drawbar hitch and powered through the tractor PTO. Self-propelled square balers exist but represent a very different investment level designed for large commercial contracting operations. The towed design of the 9YF-2200 makes it more versatile and cost-effective for farms that already own appropriate tractors, as no separate operator cab or engine is needed, and the same tractor can be used for other tasks outside the baling season.

Q7. How does a square baler compare to a round baler for small farm operations?
A: For small farm operations, comparing square vs round bales often comes down to handling capability and storage infrastructure. Square bales produced by this small square baler for compact tractor are lighter and can be manually stacked in a barn without a loader tractor, which suits smaller operations without extensive mechanisation. Round bales require a loader or bale spike for every move after ejection. If your farm has a flat-floored barn with limited internal headroom, the stackable format of square bale hay is also significantly more space-efficient than cylinders which leave large void areas between rows.

Q8. What are square baler sizes available and where does this model fit?
A: Square baler sizes range from true mini square balers producing bales of around 350 x 280 mm cross-section for hobby farms, through mid-size machines like the 9YF-2200 at 460 x 360 mm, up to large commercial big square balers producing 1200 x 700 mm or 900 x 900 mm bales for industrial-scale operations. The 9YF-2200 occupies the productive mid-market position, offering output capacity and bale density beyond hobby-grade machines while remaining compatible with standard farm tractors from 50 hp upward, without the high capital cost and large tractor requirement of big commercial square balers.

Q9. How do I replace square baler belts or tines on the pickup header?
A: Replacing spring teeth on the pickup header requires loosening the tine mounting bolt or clip, removing the worn or broken tine, and fitting the new tine in the correct orientation with the tine tip facing forward in the direction of rotation. Torque the mounting bolt to specification. For replacing square baler belts or chain segments in the drivetrain, the relevant guard or cover panel must be removed, the drive chain tensioner released, the worn section unclipped using a chain breaker tool, and the new segment fitted before the tensioner is re-engaged. Always refer to the operator manual for specific torque values and chain tension specifications for the 9YF-2200 model.

Q10. What is the square baler tires specification and can they be upgraded?
A: The 9YF-2200 is equipped with standard agricultural trailer-grade square baler tires appropriate for its 1950 kg operating weight and road transport speeds. The tire specification supports operation on both hard road surfaces and soft paddy or wet soil conditions. If operating primarily on very soft or water-saturated ground, wider low-pressure flotation tires can be considered as an upgrade to reduce ground compaction and improve traction when the tractor and baler together exceed 4,000 kg combined weight over wet soil. Contact our sales team to verify compatible tire options for your specific terrain requirements.
