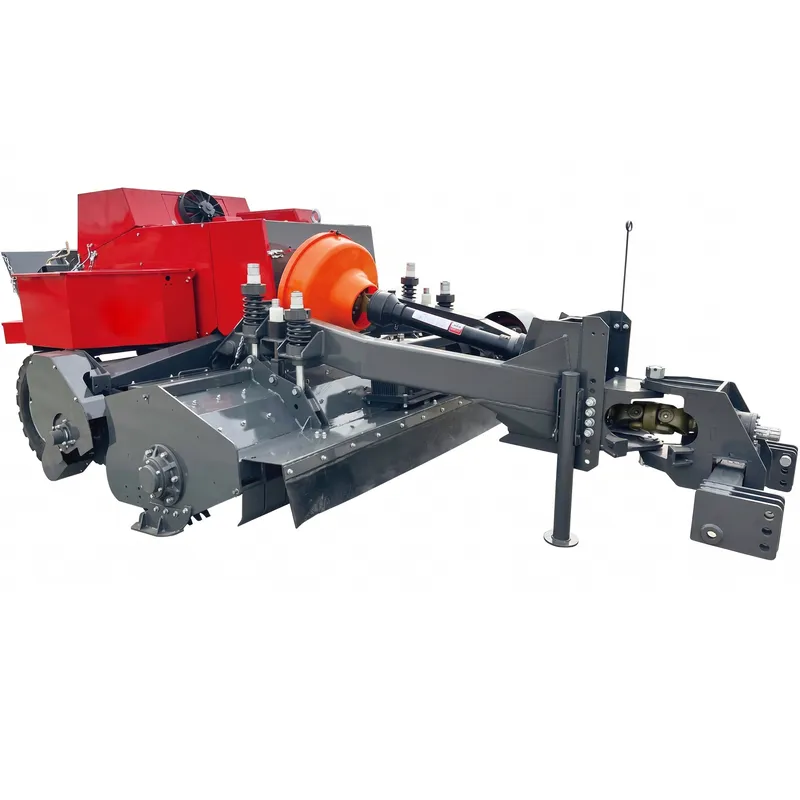

9YF-2200S Towed-type Square Baler for Tractor
The 9YF-2200S Towed-Type Square Baler is a highly adaptable and reliable small square baler purpose-built for small and medium-sized plots and individual farmers who need consistent, high-density square bales without the complexity or cost of self-propelled machines. Designed to pair seamlessly with tractors of 73.5 kW and above via a standard three-point hitch, this square baler for tractor delivers professional-grade baling performance across rice straw, wheat straw, forage grass, corn stalks, alfalfa, and cut green fodder.
9YF-2200S Towed-type Square Baler for Tractor
The 9YF-2200S Towed-Type Square Baler is a highly adaptable and reliable small square baler purpose-built for small and medium-sized plots and individual farmers who need consistent, high-density square bales without the complexity or cost of self-propelled machines. Designed to pair seamlessly with tractors of 73.5 kW and above via a standard three-point hitch, this square baler for tractor delivers professional-grade baling performance across rice straw, wheat straw, forage grass, corn stalks, alfalfa, and cut green fodder. Its wide 2200mm pick-up header collects windrows cleanly in a single pass, dramatically boosting field efficiency during peak harvest windows.
In practical field conditions, the 9YF-2200S stands out as the best square baler option for cooperatives and contract service providers who must move quickly from one field to the next. The automatic rope baling system, D-type dual knotters, and fork feeding mechanism work in concert to produce tight, well-formed square hay bales and straw bales with minimal operator intervention. Whether you need a square baler for hay, a square baler for corn stalks, or a versatile silage square baler for mixed forage operations, the 9YF-2200S is built to handle it all. Its robust welded steel frame and straightforward mechanical drivetrain keep square baler parts accessible and maintenance intervals predictable across thousands of baling hours.
Technical Specification
| No. | Item | Unit | Specification |
| 1 | Model Name | / | Model 9YF-2200S Square Baler |
| 2 | Hitching Method | / | Towed-type |
| 3 | Picking Width | mm | 2200 |
| 4 | Feeding Inlet Width | mm | / |
| 5 | Picker Structure | / | Hammer-Claw Type |
| 6 | Feeder Structure | / | Fork Feeding Mechanism |
| 7 | Knotter Type | / | D Type |
| 8 | Number of Knotters | pc | 2 |
| 9 | Compression Chamber Section Size (W×H) | mm | 460×360 |
| 10 | Baling Method | / | Automatic Rope Baling |
| 11 | Matching Power Range | kW | ≥73.5 |
| 12 | Overall Dimension (L×W×H) | mm | 6240x2760x1700 |
| 13 | Machine Weight | kg | 2350 |
Key Features of the 9YF-2200S Square Baler Machine
The 9YF-2200S is a fully multipurpose hay square baler and straw baling machine designed to handle wheat straw, rice straw, cotton stalks, corn stalks, alfalfa, fresh grass, and dry forage in a single machine. Its single shredding mechanism significantly improves pick-up speed and straw throughput, reducing harvesting costs and easing labour pressure during China's demanding "Three Summer" and "Three Autumn" rush seasons when every hour of field time counts for cooperative operators and individual farmers alike.
At the heart of this compact square baler lies an advanced single-stage shredding structure that achieves efficient crushing and fibre rubbing of hard, coarse-stemmed crops including corn, sorghum, and cotton. By pre-processing material before it enters the compression chamber, the mechanism maximises filling density and forming consistency within the 460x360mm bale chamber. The result is tightly compacted square hay bales that resist shape loss during transport, storage in barns, and transfer through square bale feeder systems on livestock operations.
The 9YF-2200S holds a unique distinction: it is currently the only square baler machine in Mexico certified to reliably pick up and bale upright, lodged, or fully laid crop material, including corn, sorghum, cotton, and wheat stalks. It operates effectively across a wide crop moisture range: leguminous and gramineous forage at 17-23%, rice and wheat straw at 10-23%, on ground with soil moisture of 12-25% and slopes up to 8 degrees. This versatility makes it essential equipment for both animal husbandry supply chains and agricultural straw recycling programmes that demand consistent output regardless of field conditions.
How Does a Square Baler Work?
1. PTO Power Transmission
The tractor's PTO shaft transfers power through a dedicated driveline into the baler's main gearbox. For the 9YF-2200S, the minimum matching power is 73.5 kW, ensuring consistent torque delivery to all working units even under heavy crop loads. The square baler PTO shaft operates at standard 540 or 1000 rpm depending on configuration, driving every mechanical function simultaneously through a central cam-and-crankshaft assembly.
2. Crop Pick-Up
As the baler moves forward, the 2200mm wide Hammer-Claw pick-up header lifts cut material from the windrow off the ground surface. Spring-steel tines revolve at high speed to flick straw or forage upward and rearward into the feed channel without clogging. The wide pick-up width allows the operator to collect broad windrows in a single pass, reducing the number of passes needed per field and cutting total field time significantly compared to narrower mini square baler units.
3. Single Shredding and Pre-Processing
Before the crop enters the bale chamber, the patented single shredding mechanism processes the material through a rotating impeller fitted with hardened blades. This stage crushes and rubs hard-stemmed crops like corn and sorghum into consistent, interleaved fibre lengths. Pre-processed material fills the bale chamber more uniformly, eliminates air pockets that weaken bale structure, and allows the plunger to achieve higher compaction ratios, producing denser straw square bales than machines without this step.
4. Fork Feeding into the Bale Chamber
The fork feeding mechanism meters pre-shredded crop into the rectangular 460x360mm compression chamber in timed charges. Each charge is pushed upward by the fork into the path of the reciprocating plunger. Precise timing between the fork cycle and plunger stroke prevents material from being cut or jammed, ensuring smooth, uninterrupted bale formation even at high forward travel speeds typical of large-area compact square baler operation.
5. Plunger Compression
The main plunger, driven by a heavy-duty crankshaft, reciprocates at high frequency inside the bale chamber, progressively compressing each incoming charge of material against the resistance of the already-formed bale ahead. A bale length sensor tracks accumulation and triggers the knotter cycle once the target bale length is reached. Tension on the bale chamber walls can be adjusted via external bolts to match the target density for a given crop type, making square baler sizes and density fully adaptable to operator requirements.
6. Automatic Knotting and Ejection
When the bale reaches the set length, the two D-type knotters simultaneously wrap and tie square baler twine around the bale in two loops, then cut the twine cleanly and reset for the next cycle, all without operator input. The finished bale is ejected rearward through the discharge chute and drops onto the field for later collection using a square bale bundler or loader. The automatic rope baling system eliminates manual tying and drastically improves output consistency compared to manually assisted tying used on older or lower-specification square baling machines.
Application Areas
Rice Straw
Rice straw baling after combine harvesting is one of the most time-sensitive operations in Asian agriculture. The 9YF-2200S handles paddy field rice straw at 10-23% moisture content, cleanly picking up windrows laid by the combine and producing firm, well-tied square hay bales that can be stored, transported, or fed directly to cattle and sheep without further processing. Its wide 2200mm pick-up reduces field passes and gets rice fields turned over faster ahead of the next crop cycle.
Wheat Straw
Wheat straw is the most commonly baled material in temperate grain belts. The 9YF-2200S excels as a square straw baler for wheat, picking up even short, fragile straw cleanly thanks to its Hammer-Claw pick-up tines and single shredding pre-processing. The resulting bales of square bale hay and straw are ideal for mushroom cultivation substrate, paper pulp feedstock, biomass energy plants, and livestock bedding across China, India, and Eastern Europe where wheat straw volumes are enormous.
Corn Silage
As a dedicated square baler for corn stalks and a capable silage square baler, the 9YF-2200S handles corn stover, cut green corn fodder, and partially wilted silage material at up to 23% moisture. The single shredding mechanism breaks down thick corn internodes for uniform bale density, while the bale chamber geometry produces a consistent output suited for wrapping with square baler wrap film for oxygen-free silage fermentation used in dairy and beef feedlot systems.
Cotton Stalks
Cotton stalk baling is uniquely challenging due to the crop's woody, branching structure and tendency to remain partially upright in the field after harvest. The 9YF-2200S is one of the few small square baler for compact tractor class machines capable of collecting and baling both standing and lodged cotton stalks reliably. The shredding mechanism reduces stalk diameter before compression, while the dual knotters bind the fibrous material securely. Baled cotton stalks are used for biomass fuel, papermaking, and organic compost production.
Pasture Grass
As a versatile square baler for hay and cultivated pasture grasses, the 9YF-2200S accommodates gramineous forage species such as ryegrass, fescue, Bermuda grass, and native pasture at 17-23% moisture. The fork feeding mechanism ensures even loading for each plunger stroke, producing well-formed square bale hay with consistent weight and density across the bale run. These uniform bales simplify inventory management, loading into square bale feeder wagons, and freight calculations for export to livestock farms.
Sugarcane Tops and Leaves
In sugarcane growing regions of southern China, Southeast Asia, and South America, the residual tops and leaf material left after harvesting represent a significant feedstock for cattle feeding and power generation. The 9YF-2200S's shredding mechanism processes the fibrous sugarcane material into manageable lengths, and the wide pick-up gathers bulky leaf windrows efficiently. The resulting bales can be fed fresh or ensiled under stretch film, providing cost-effective feed for livestock operations adjacent to sugar mills and plantations.
Reeds and Wetland Grass
Reeds and tall wetland grasses present a challenging baling scenario due to their height, brittleness when dry, and the uneven terrain often encountered around waterways and lake margins. The 9YF-2200S operates on slopes up to 8 degrees and tolerates field soil moisture up to 25%, giving it genuine capability in wetland margins and riverside areas where reeds are harvested annually for thatching, paper pulp, and biomass applications. The machine's robust frame and wide track ensure stability on soft or uneven ground.
Alfalfa
Alfalfa is among the highest-value forages in global livestock production, and bale quality directly affects leaf retention, protein content, and market price. The 9YF-2200S is fully suited to small square hay baler work on alfalfa at 17-23% moisture content, where tight compression limits oxygen infiltration and preserves leaf fraction. As a mini square hay baler for smaller dairy or sheep operations, it produces consistently dense bales that hold together well during stacking, loading, and use in automated square bale processor and feeding systems.
Hay Square Baler Parts and Structure
1. Pick-Up Header Assembly
The 2200mm wide Hammer-Claw pick-up header is the machine's ground-contact interface. Rows of hardened spring-steel tines mounted on a rotating reel lift cut crop from the ground and direct it rearward into the feed channel. Cam-controlled tine retraction at the top of the reel arc prevents re-dropping of material. The pick-up is suspended on gauge wheels to maintain precise ground-following height, and lateral float allows it to follow field contours and undulations without scalping or missing material.
2. Single Shredding Mechanism
Located between the pick-up and the bale chamber inlet, the single-stage shredder consists of a high-speed rotor fitted with interchangeable hardened blades or flail hammers. It processes crop material at up to 23% moisture, crushing stalks and opening fibre bundles for more uniform compression. The housing includes adjustable counter-knives to set shred length. This unit is a key differentiator of the 9YF-2200S, enabling it to handle crop types that would jam or produce low-density bales in non-shredding square bale baler machines.
3. Fork Feeding Mechanism
The fork feeder meters crop charges into the compression chamber in sync with the plunger's reciprocating cycle. A timed array of forks sweeps material from the pre-chamber into the main bale channel during the plunger's retraction phase, then retracts clear before the plunger advances to compress. Precise cam timing prevents material pinching or excessive load spikes on the main drivetrain. The fork feeding structure is robust enough to handle the chunky, pre-shredded material produced by the shredder while maintaining smooth, high-frequency cycling.
4. Plunger and Crankshaft Compression Unit
The main plunger is a heavy steel sled that reciprocates inside the rectangular 460x360mm bale chamber, driven by a large-diameter flywheel and crankshaft assembly. The flywheel stores rotational energy between strokes, smoothing the power demand from the tractor and preventing PTO shaft torque spikes. Chamber wall tension plates are adjustable via external bolts to regulate bale density for different crops and uses. Replaceable wear strips line the chamber walls and floor, making long-term maintenance of square baler parts straightforward and economical.
5. Dual D-Type Knotters
The twin D-type knotters are the most mechanically intricate components on the machine, responsible for wrapping square baler twine around completed bales and tying a secure knot without operator assistance. Each knotter consists of a bill hook, twine disc, stripper arm, and knife, all driven in a precisely timed single-revolution cycle. D-type knotters are widely recognized across the industry for their reliability and compatibility with both sisal and synthetic polypropylene square baler twine. Two knotters running in parallel ensure both ties are placed simultaneously for perfectly secured bales.
6. Twine Box and Length Metering System
The twine box holds multiple spools of square baler twine or alternative binding materials and feeds them through tensioners to the needles. A bale length metering wheel rolls against the side of the forming bale and triggers the knotter cycle via a mechanical trip mechanism when the preset bale length is reached. Bale length can be adjusted to produce shorter or longer bales depending on storage requirements and how long a square bale of hay needs to be for handling equipment compatibility. The metering system is simple, robust, and requires no electronics to function reliably.
7. PTO Drivetrain and Main Gearbox
Power enters the 9YF-2200S via a wide-angle universal joint connected to the tractor's PTO shaft. The main gearbox distributes drive simultaneously to the pick-up header, shredder rotor, fork feeder, and plunger crankshaft, with each branch protected by shear bolt overload protection against sudden ingestion blockages. The gearbox housing is sealed and oil-bath lubricated for extended service life. All exposed square baler rollers and intermediate shafts run in greaseable sealed bearings to minimise daily maintenance requirements in dusty field conditions.
Square Baler vs. Round Baler
1. Bale Shape and Storage Efficiency
Square bales produced by a small square baler like the 9YF-2200S stack directly onto flat pallets or barn floors with no wasted space between bales, unlike round bales which leave triangular air gaps in every row. This geometric efficiency reduces warehouse footprint by up to 25% versus round bales, making square baling the preferred format for commercial hay dealers, export packers, and any operation with limited covered storage. Round bales roll freely, requiring sloped or rack storage to prevent movement.
2. Bale Weight and Handling
A typical small square bale from the 9YF-2200S weighs between 15 and 40 kg depending on crop density, making it manageable by one or two people without mechanical assistance. This is a decisive advantage for small farms, individual animal owners, and markets where manual handling is necessary. Round bales from large round balers typically weigh 300-500 kg and require a tractor with front loader or telehandler for every move, adding equipment cost and limiting handling flexibility, especially in confined barn spaces.
3. Feed Quality and Wastage
Square baling is widely accepted as the superior format for premium forage like alfalfa and clovers, where leaf retention during handling directly affects protein content and sale value. Because square bales are denser and smaller, livestock feeders can portion out exact rations with minimal exposure of unused material to weather and air. Round bales, while efficient for bulk roughage feeding, expose a large outer surface when unwrapped and tend to cause 15-30% higher feed wastage when fed out in rings or on open ground, a cost that accumulates rapidly across large livestock herds.
4. Transport and Export Compatibility
Square bales load onto standard flatbed trucks and shipping containers in regular brick-stacked layers, achieving high payload density and requiring no specialised strapping fixtures. This makes the hay square baler machine the format of choice for international hay exporters shipping to Japan, South Korea, the Middle East, and Southeast Asia, where importers specify square bales for exactly this reason. Round bales, by contrast, require purpose-built transport trailers with stanchions and typically lose 15-20% of container payload capacity due to their geometry and mandatory protective netting layers.
5. Initial Cost and Tractor Requirements
A quality compact square baler like the 9YF-2200S requires a minimum 73.5 kW tractor but has a lower purchase price than large round balers of comparable throughput. Maintenance costs are also predictable because square baler parts are widely stocked and the mechanical drivetrains are well-standardised across the industry. Round balers carrying large diameter belts or chains incur significantly higher maintenance expense when square baler belts or equivalent components wear. For smaller operations or service contractors, the lower total ownership cost of a reliable mini square hay baler often wins the calculation.
Square Hay Baler Maintenance Tips
Daily Pre-Season Inspection
Before each season, perform a thorough inspection of all pick-up tines for bending or cracks, all shredder blade edges for wear or chipping, and all knotter bill hook faces for surface corrosion or burrs that could cause twine slippage. Verify all shear bolt positions and replace any that have been sheared. Confirm twine tension springs on both D-type knotters are set identically and that the bale metering wheel rolls freely. Check PTO shaft universal joints for play and lubricate per the interval chart in the operator manual.
Lubrication Schedule
The 9YF-2200S requires systematic greasing of all grease nipples every 8-10 operating hours during the baling season. Key lubrication points include the plunger slide bearings, pick-up tine cam tracks, fork feeder pivot pins, knotter bill hook pivots, and all intermediate shaft bearings in the drivetrain. The main gearbox uses oil-bath lubrication and oil level should be checked every 50 hours; oil should be changed after the first 100 hours and annually thereafter. Using high-quality EP grease prevents premature bearing failure in abrasive straw dust environments.
Knotter Cleaning and Adjustment
The twin D-type knotters are the highest-precision components on a square baler and must be kept clean and correctly adjusted to prevent missed knots. Clean both knotters with a brush and compressed air after every 4 hours of operation to remove chaff build-up from around bill hooks, twine discs, and strippers. Check bill hook timing against the reference marks in the manual and adjust the trip mechanism to confirm knotting cycles fire only at the correct bale length. Incorrect twine disc tension is the most common cause of missed knots; set it per the manufacturer specification in your operator guide.
Shredder Blade Inspection and Replacement
Inspect all shredder rotor blades after every 20-30 operating hours in abrasive crops like corn stalks. Worn or chipped blades reduce processing effectiveness and can cause uneven material feeding that stresses the fork mechanism and plunger. Blades are reversible on many designs to double service life before replacement. Balance the rotor after replacing blades by ensuring equal-weight blades are fitted in opposing positions. Always disconnect and lock out the PTO before opening any shredder access panels or reaching near the rotor. Store replacement blades as essential spare square baler parts.
Bale Chamber Wear Strip Monitoring
The inner surfaces of the bale chamber are protected by replaceable hardened wear strips bolted to the floor and walls. These strips take the abrasion load from compressed straw and stalk material and should be measured for thickness at the start of each season and after every 200 operating hours. If wear strip thickness falls below the minimum value in the manual, replace immediately because worn-through strips allow the base metal to score, making replacement of the chamber panels necessary at far greater cost. Keep at least one full set of wear strips in stock as essential long-season service parts.
End-of-Season Storage Preparation
At the end of each baling season, clean all chaff and dust from every part of the machine, especially from around the knotter area, PTO shaft shields, and shredder housing. Remove and inspect all shear bolts, replace any that show stress cracking, and oil all exposed bolts and pins to prevent corrosion. Coat all bright machined surfaces with a light layer of protective grease or anticorrosion spray. Store the machine on level ground under cover or with a weatherproof tarpaulin. Remove any remaining square baler twine from the twine box and store separately in a dry location to prevent UV degradation.
Square Baler PTO Shaft: The Power Link Between Tractor and Baler
The relationship between a square baler and its PTO shaft is foundational to machine performance, reliability, and operator safety. Every mechanical function of the 9YF-2200S, from the pick-up header and shredder rotor to the plunger crankshaft and knotter timing cams, draws its power from a single source: the tractor's rear PTO output, transmitted through the square baler PTO shaft to the baler's main gearbox.
A standard PTO shaft for square baler applications consists of two yokes connected by one or more universal joint crosses, an inner and outer sliding tube set that telescopes to accommodate hitch travel, and a full outer plastic or metal shielding system. For the 9YF-2200S operating at 73.5 kW minimum, the PTO shaft must be rated for the peak torque delivered during plunger compression in dense crop material, which can significantly exceed average running torque. Choosing a shaft with a genuine torque safety factor of 1.4 to 1.6 times rated peak torque is the practical recommendation for hard-crop baling scenarios such as corn stalk and sorghum baling.
The operating angle of the square baler PTO shaft between tractor and baler is a critical installation parameter. Most single-joint PTO shafts operate smoothly at angles up to 15 degrees but generate velocity fluctuations and vibration above this limit. Wide-angle joints, sometimes called constant velocity or homokinetic joints, allow greater hitch offsets without vibration and are recommended where field terrain or hitch geometry causes angles beyond 25 degrees. For the 9YF-2200S, maintaining tractor-to-baler alignment within the specified angular range prolongs the life of the gearbox input shaft seals, reduces fatigue on all downstream drivetrain components, and prevents the characteristic "plunger kick" vibration that can misalign knotter timing over a season of hard work.
The telescoping shaft tubes must overlap by at least one-third of their total compressed length at all times during operation to prevent separation at full hitch extension. Conversely, the shaft must not bottom out in compression when the tractor turns sharply. Measure both extremes before beginning work in a new field with unusual turning patterns or steep headlands. Shear bolt overload protection in the baler's PTO input gearbox is an additional safeguard: when material ingestion or mechanical resistance spikes torque above safe limits, the sacrificial shear bolt severs cleanly to prevent damage to more expensive gearbox or crankshaft components. Keep a stock of the correct specification shear bolts for your specific baler configuration to avoid substituting incorrect strength bolts that either do not shear when needed or shear unnecessarily at normal working loads.
Frequently Asked Questions
Q1: What tractor size do I need to run the 9YF-2200S square baler?
A: The 9YF-2200S requires a minimum matching power of 73.5 kW (approximately 99 hp) from the tractor's PTO output. For lighter crops like wheat straw you can work close to this minimum, but for dense materials like corn stalks or high-moisture alfalfa we recommend pairing with a tractor of 90-110 kW to maintain comfortable PTO torque margins and avoid unnecessary shear bolt activations. The machine is a square baler for compact tractor use when the tractor meets the minimum power threshold.
Q2: How long is a square bale of hay produced by the 9YF-2200S?
A: Bale length on the 9YF-2200S is adjustable via the bale metering wheel and trip mechanism. Standard settings produce bales that are approximately 600-900mm long with a 460x360mm cross-section, but operators can adjust the trip setting to produce shorter bales for ease of manual handling or longer bales for higher-density storage and export stacking. Contact our technical team for guidance on the specific bale length that best suits your handling equipment and end market requirements.
Q3: Can this square baler handle lodged or downed crop material?
A: Yes. The 9YF-2200S is currently the only square baler machine in China certified to reliably pick up and bale upright, lodged, and fully laid crop material, including corn, sorghum, wheat, and cotton stalks. The Hammer-Claw pick-up tines penetrate the windrow from multiple angles and the single shredding mechanism processes tangled or matted material before it reaches the bale chamber, preventing the blockages that affect standard pick-up-only square balers in difficult crop conditions.
Q4: What type of twine should I use in this square baler?
A: The 9YF-2200S is compatible with both natural sisal square baler twine and synthetic polypropylene (PP) twine. For most hay and straw applications, a 130-140 kg tensile strength PP twine is recommended for reliable knotting performance with the D-type knotters. Sisal twine is preferred where bales will be used for animal feed to avoid plastic contamination. Always use twine of consistent quality from a reputable supplier, as diameter variation in cheap twine is a leading cause of missed knots in the field.
Q5: What is the ideal crop moisture range for operating this small square baler?
A: For leguminous forage such as alfalfa and clover, the recommended range is 17-23% moisture. For gramineous forage such as ryegrass and Bermuda grass, the same 17-23% range applies. Rice straw, wheat straw, and corn stalks can be baled at 10-23% moisture. Operating below 10% moisture risks fibre breakage and poor bale cohesion. Operating above 23% risks overheating, mould development in stored bales, and feed channel blockages. A simple handheld hay moisture meter is the most practical tool for confirming readiness before baling operations begin each morning.
Q6: How does the 9YF-2200S square baler compare to self propelled square balers?
A: A self propelled square baler combines the tractor and baler into a single self-driving machine, offering top speeds and large-capacity throughput for very large farm operations. However, self-propelled models cost several times more than the 9YF-2200S and require specialist servicing. For small to medium farms, agricultural cooperatives, and contract service operators who already own a suitable tractor, a towed compact square baler like the 9YF-2200S delivers excellent output at a fraction of the total investment and with far lower operating costs per bale over a typical 5-8 year service life.
Q7: How do I replace square baler belts or other wear parts?
A: The 9YF-2200S uses a mechanical plunger-based compression system rather than belts for bale formation, so it does not have the large compression belts common on round balers. Wear parts that require periodic replacement include pick-up tines, shredder blades, chamber wear strips, knotter bill hooks, and twine disc springs. All square baler parts are available directly from Ever-Power with typical dispatch within 2-3 business days for stocked items. Full illustrated parts lists with part numbers are included in the machine documentation supplied at delivery.
Q8: Can the 9YF-2200S be used as a square baler for silage?
A: Yes, the 9YF-2200S is well suited for producing square bale silage from corn, sorghum, and grass at moisture content up to 23%. As a silage square baler, it produces bales that can then be individually wrapped with stretch film using a bale wrapper to create airtight fermentation conditions. Square bale silage offers logistical advantages over round bale silage including better truck loading density and smaller individual bale size that allows more precise daily ration management. Contact us for recommended square baler wrap film specifications compatible with bales of this cross-section.
Q9: How often should square baler rollers and bearings be lubricated?
A: All square baler rollers, shaft bearings, and grease nipple points on the 9YF-2200S should be lubricated every 8-10 operating hours during the baling season. In very dusty conditions such as dry straw baling, shorten this interval to 6-8 hours as airborne chaff accelerates abrasive wear of bearing seal lips. The main gearbox uses oil-bath lubrication and oil should be checked visually at every refuelling stop and changed at the annual service interval. Maintaining the lubrication schedule is the single most important maintenance task for maximising bearing and shaft service life on any square baling machine.
Q10: What is the operating slope limit for this square baler?
A: The 9YF-2200S is rated for operation on field slopes up to 8 degrees (approximately 14% grade). Beyond this gradient, lateral stability of the tractor-baler combination may be compromised and material distribution across the full pick-up width can become uneven, reducing bale quality. On slopes approaching the limit, reduce forward speed and make passes across the slope rather than up or down. The machine's soil moisture operating limit of up to 25% soil moisture helps define conditions where soft ground traction may also limit safe operation on inclines.
